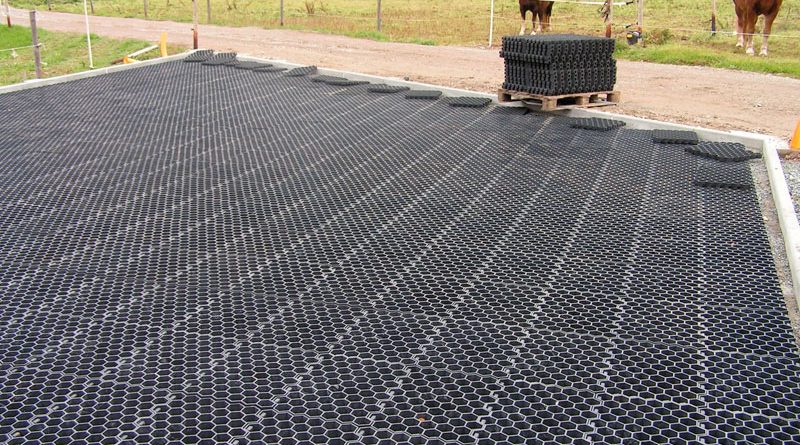

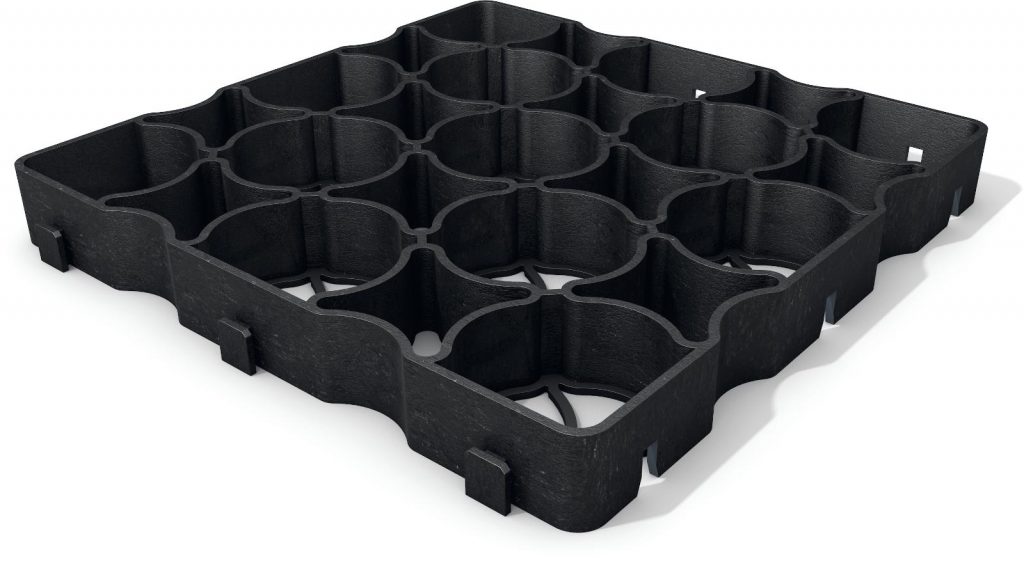

EKOgrid – Interlocking Porous Paving Grid

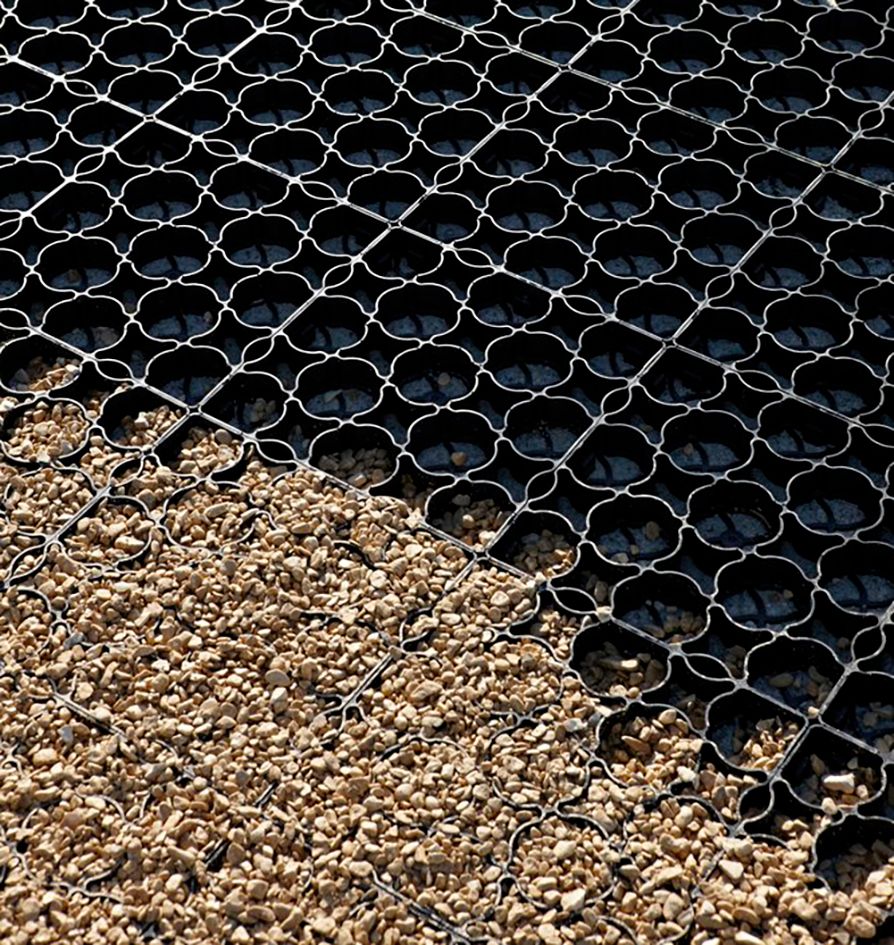

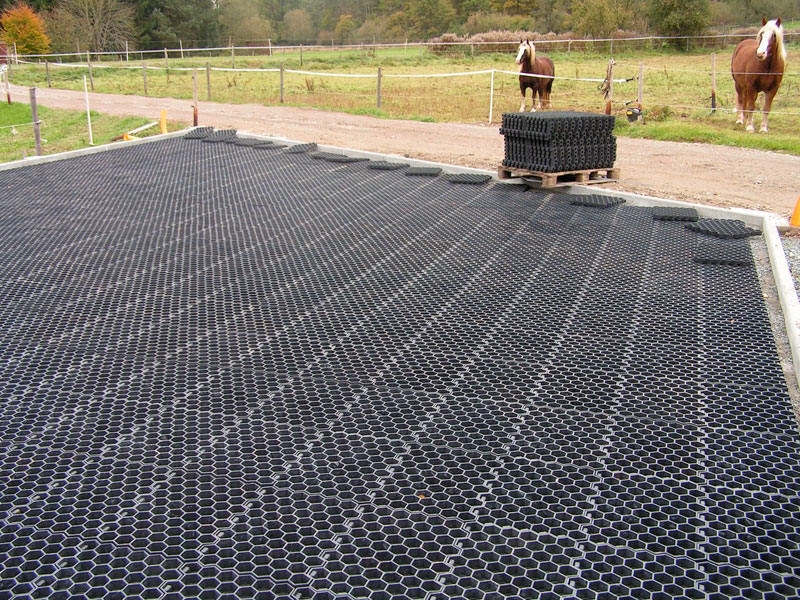

EKOgrid is a high-performance grid made from recycled polypropylene. EKOgrid can be filled with earth or gravel. The structure allows rainwater to pass through at a controlled rate and is SUD (Sustainable Urban Drainage) regulations compliant. Parking space delineators (fitted white caps) are available as an optional extra. Vehicle movement is not a static force. Cars and trucks put grids under considerable vertical and horizontal pressure, particularly when using power steering. The interlocking system must be tough enough to withstand this pressure and the PTV 828 standard specifies a minimum strength of 3 kN/m length to ensure a secure connection.

  • Dimensions: 33.3 x 33.3 x 4 cm
  • Rigid load bearing grid system.
  • Lightweight
  • High load capacity: 250 to 350 tons per m²

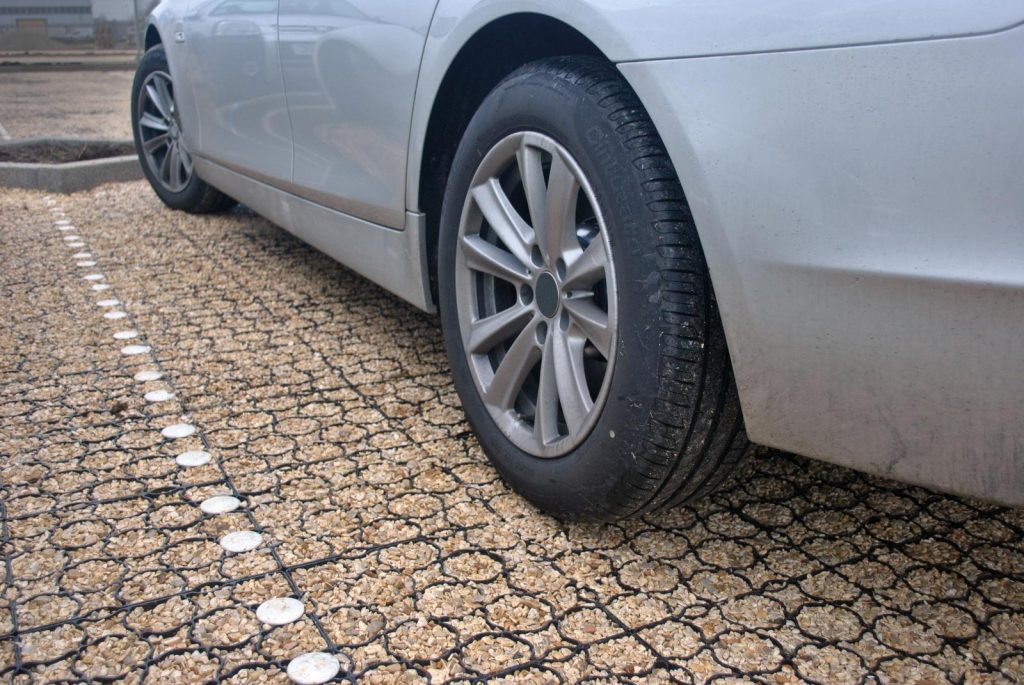

  • Add-on options available, e.g., white caps to mark parking spaces.
  • Easy to install.
  • Weight: 0.5kg
  • 20 Year Warranty
  • 100% Recycled
  • 100% Recyclable

Website: www.slpw.co.uk
